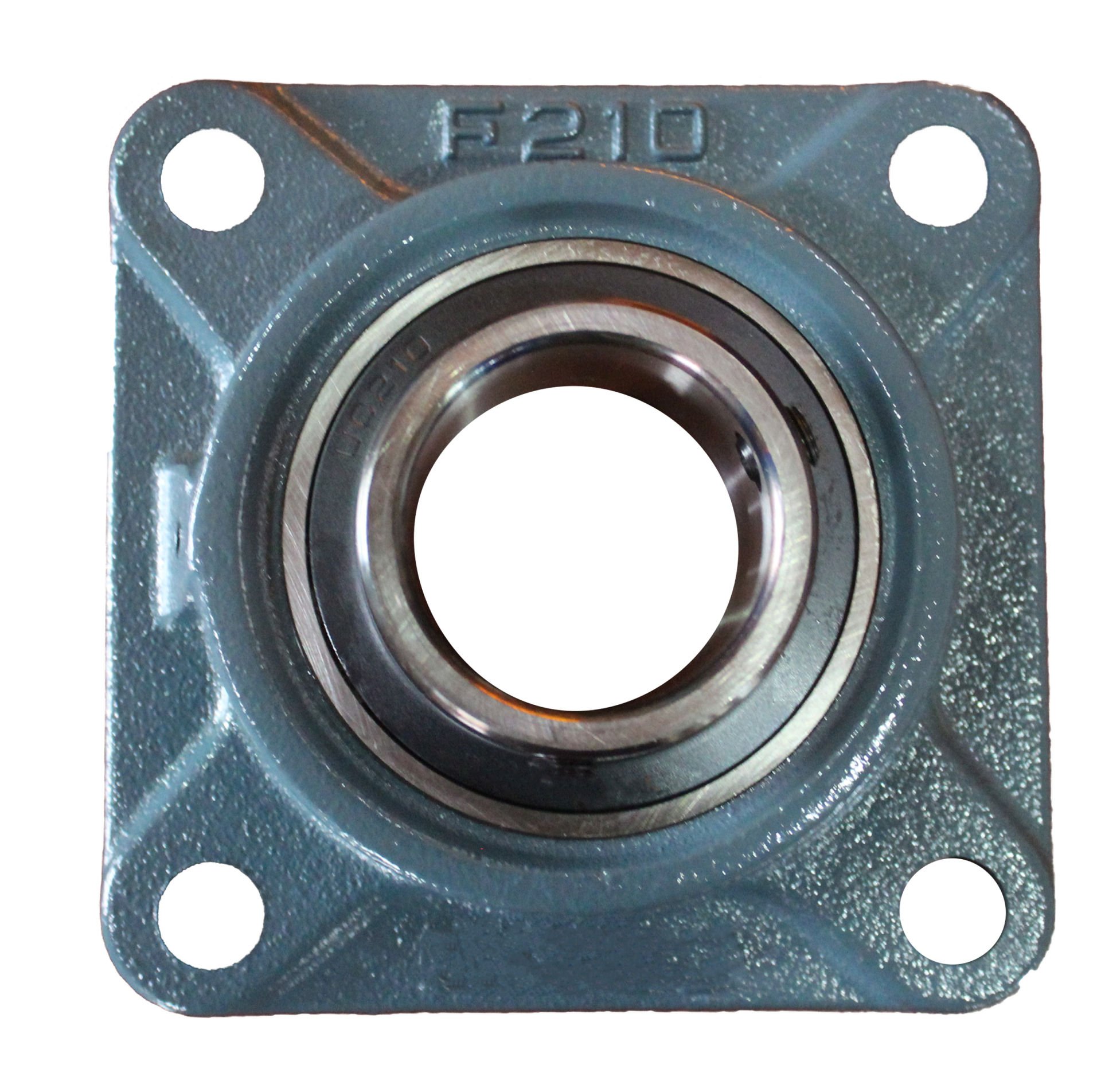

Ucf 210

UCF 210

Cast Iron Housing

Dimensions

Kg: 2,4

Shaft diameter 50 mm

Housing overall width 39,5 mm

Width, total 54,6 mm

Centre distance between bolt holes 111 mm

Bearing width, total 51,6 mm

Housing type Flanged

Flanged housing type

Square Number of bolt holes for fasteners 4

Fastening bolt hole typePlain

Retaining feature, inner ring Set screws

Bore type Cylindrical

Rubber seating ring Without

Material, housing Cast iron

Material, bearing Bearing steel
